Explore this machine →Standard 2D CNC

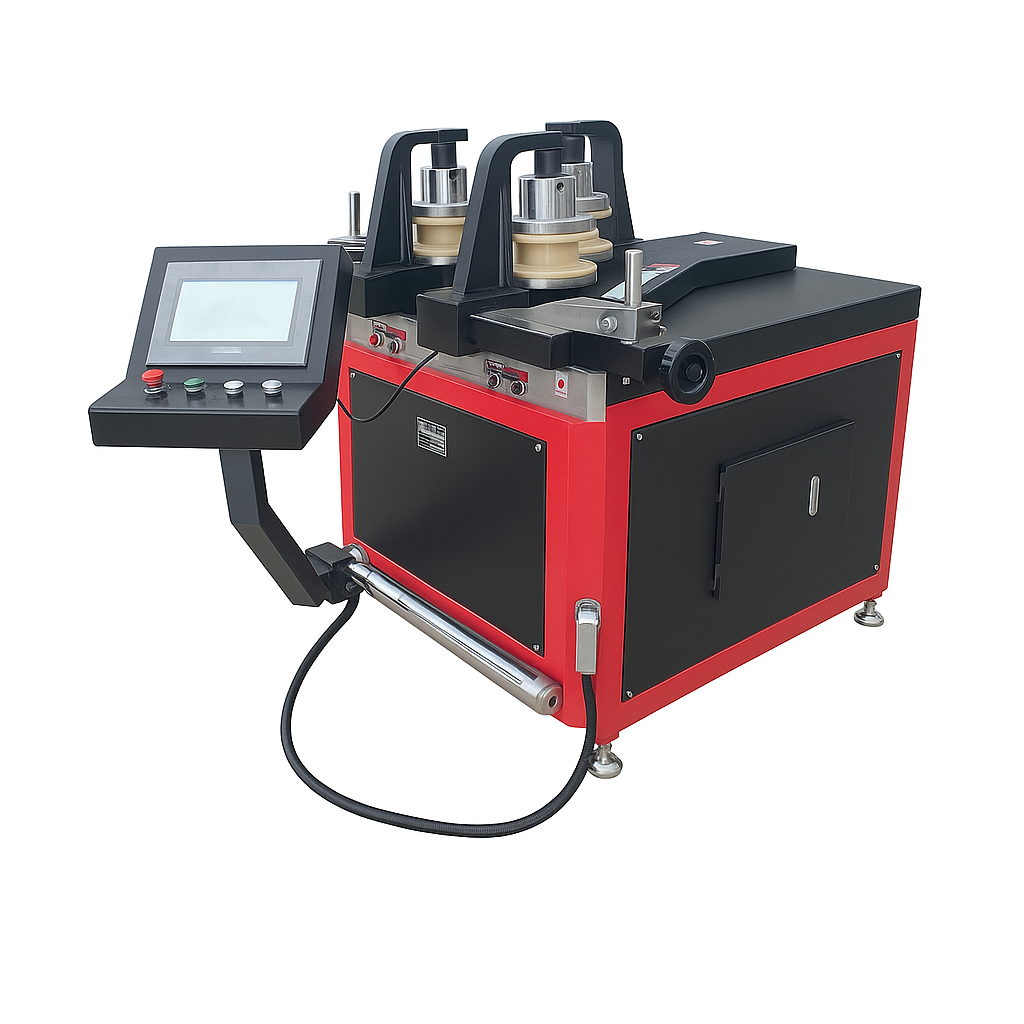

LGW-CNC-13T CNC Profile Bending Machine
A practical CNC starting point for planar profile bending.
13 TRated forceDual servoDrive arrangement100 mmReference minimum radius120 mm × 200 mmReference profile envelope
18 months warrantyFree test bendingDrawing-led selectionRemote & on-site support options
Where it fits
Arched windows, signs, decorative frames and general profile work
The dual-servo 13T system suits buyers assessing straightforward two-dimensional bending jobs. Compare the actual section and radius before moving to a larger machine.
Share any end-flat limit and final trimming allowance so the complete production route can be reviewed.
Send these details for selection
- Section drawing or dimensioned photos
- Material grade, temper and wall thickness
- Target radius and bend orientation
- Part length, end allowance and quantity
- Surface and dimensional requirements
Technical reference
Specifications
| Model | LGW-CNC-13T |
|---|---|
| Drive arrangement | Dual servo |
| Rated Y-axis force | 13 T |
| Total installed power | 4 kW |
| Catalog axis positioning / repeat positioning accuracy | < 0.01 mm |
| Reference minimum bend radius | 100 mm |
| Axis spacing | 280–600 mm |
| Reference profile width limit | 120 mm |
| Reference profile height limit | 200 mm |
| Catalog section-envelope area limit | 8,000 mm² |
| Machine dimensions | 1500 × 1200 × 1400 mm |
| Machine weight | 900 kg |
Source: supplied 2025 catalog, printed pages 10 / 11. Figures describe the catalog configuration. Width, height and area limits are separate checks, not a promise that every section within the envelope can be bent. Standard aluminum data uses 6063-T5 with 1.5 mm wall thickness; the heavy-duty 70T requires a project-specific review. Minimum radius depends on section and tooling. Axis positioning accuracy is not finished-part accuracy. Final specifications are confirmed in the quotation.
How the system supports production
What the control arrangement does
01
Controlled roller movement
The quoted drive arrangement controls the machine axes used to feed and form the profile. The final axis functions and control configuration are confirmed for the ordered machine.
02
Programmed repeat work
CNC control supports repeatable machine movements for suitable batch jobs. Finished-part consistency still depends on material, tooling, setup and the agreed inspection method.
03
Section-matched tooling
Rollers and supports are reviewed against the complete cross-section, bending direction and protected surfaces before the configuration is confirmed.
Tooling & configuration

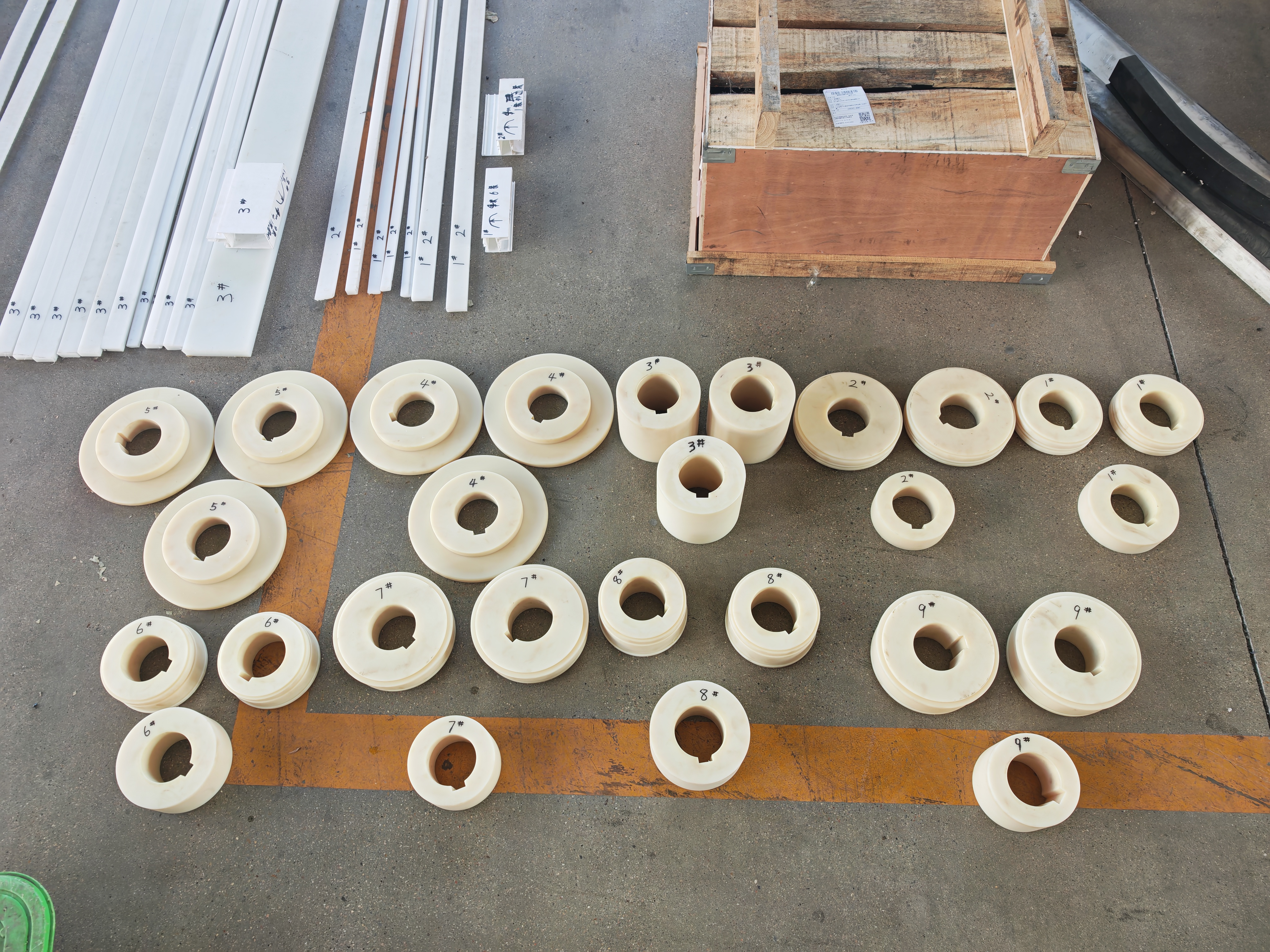

The roller set is part of the solution
Profile chambers, visible surfaces and bending direction influence roller geometry and support. We review these details before confirming tooling.
- Section-specific roller and support design
- Electrical supply matched to the destination
- Control and software configuration confirmed with the order
- Handling and commissioning requirements reviewed in advance
Look closely at the result

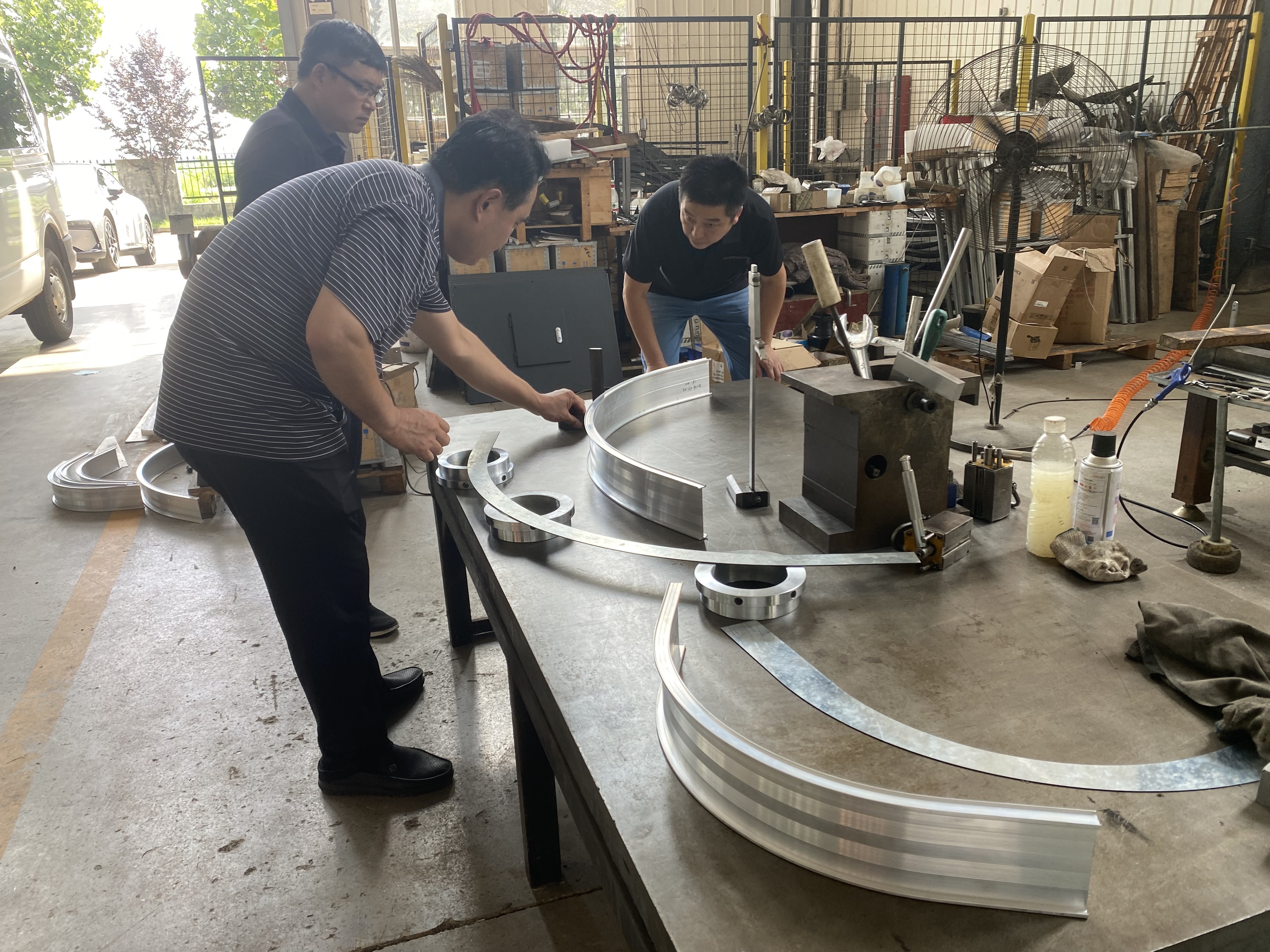

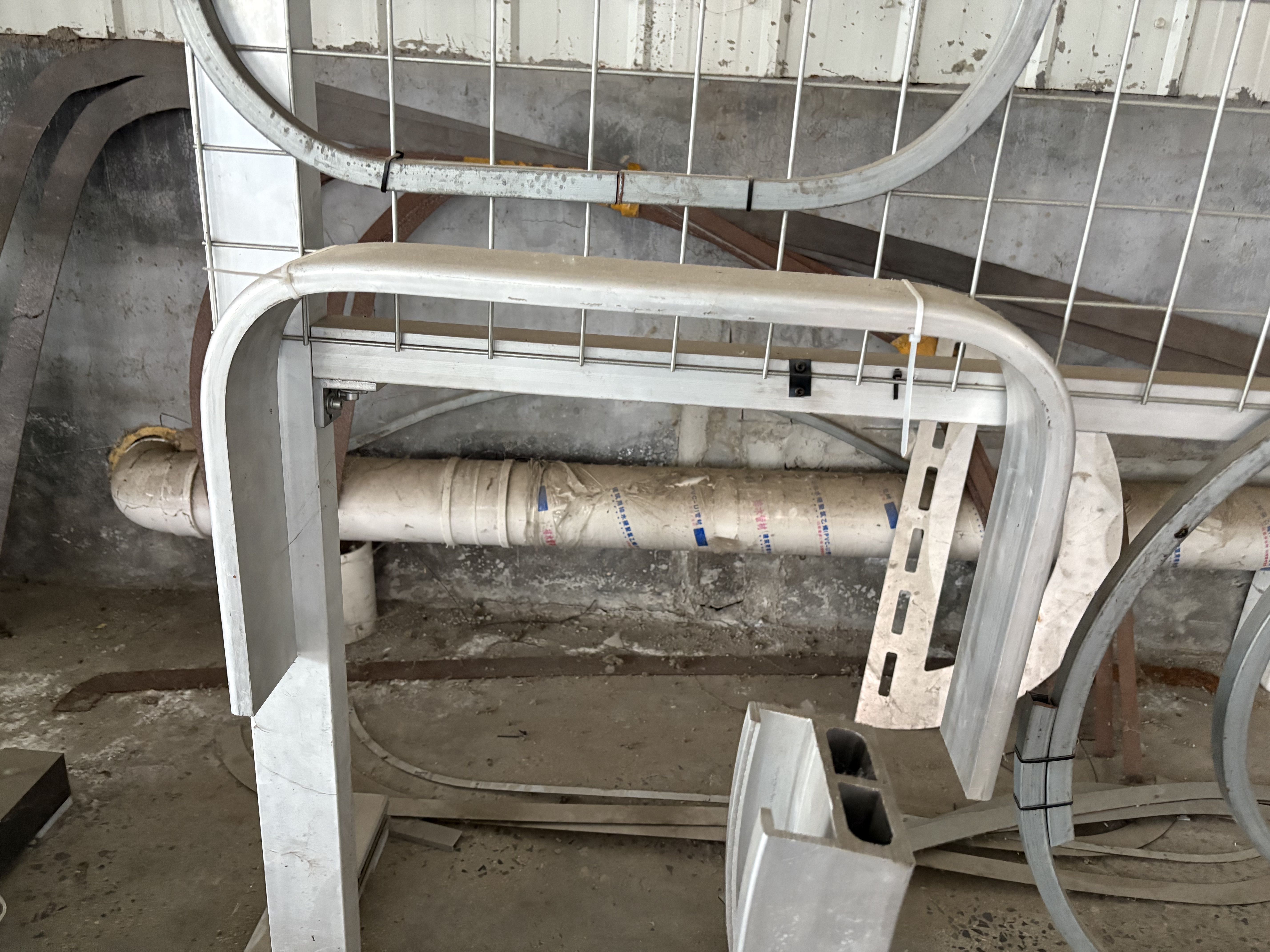

These supplied sample and inspection photos illustrate the review process. They are not a capacity or accuracy claim for this individual model. Send your actual material for a model-specific trial.
Commercial and delivery checklist
Confirm the complete supply before ordering
Machine and tooling
Confirm the machine configuration, roller tooling, profile supports, controls and electrical supply included in the quotation.
Packing and delivery
Confirm production schedule, trade terms, packing, shipping scope, final dimensions and unloading requirements for your site.
Training and support
Confirm remote or on-site commissioning, operator training, warranty coverage, service contacts and the recommended spare-parts list.
Questions about LGW-CNC-13T
Is LGW-CNC-13T suitable for my part?
Share any end-flat limit and final trimming allowance so the complete production route can be reviewed. Send your drawing for engineering confirmation.
Does axis accuracy mean the same accuracy on my finished part?
No. Axis positioning accuracy describes machine motion. Final geometry also depends on material variation, springback, tooling, setup and measurement. Agree on a test and acceptance criteria for your part.
Is test bending free?
We provide free test bending. Contact us first to agree on sample quantity, length, the test plan and shipping arrangements. Production tooling and the final configuration are confirmed in the quotation.
What warranty and training do you provide?
The machine warranty is 18 months, with coverage and terms stated in the sales agreement. Remote video guidance is available for installation and training. On-site commissioning can also be arranged; scope, travel and costs are agreed in advance.
Can you supply the correct voltage for my country?
Tell us your site voltage, frequency and phase. Export electrical configurations are reviewed before the order is confirmed.
How do you quote the machine and tooling?
The quotation follows drawing review and covers the agreed configuration, tooling, packing and delivery terms. Pricing and delivery time depend on the job and current production schedule.
Compare other configurations
Four-servo CNC
MGW-CNC-25T
More force for larger architectural and industrial sections.
25 Trated force11 kWcatalog power
Explore this machine →

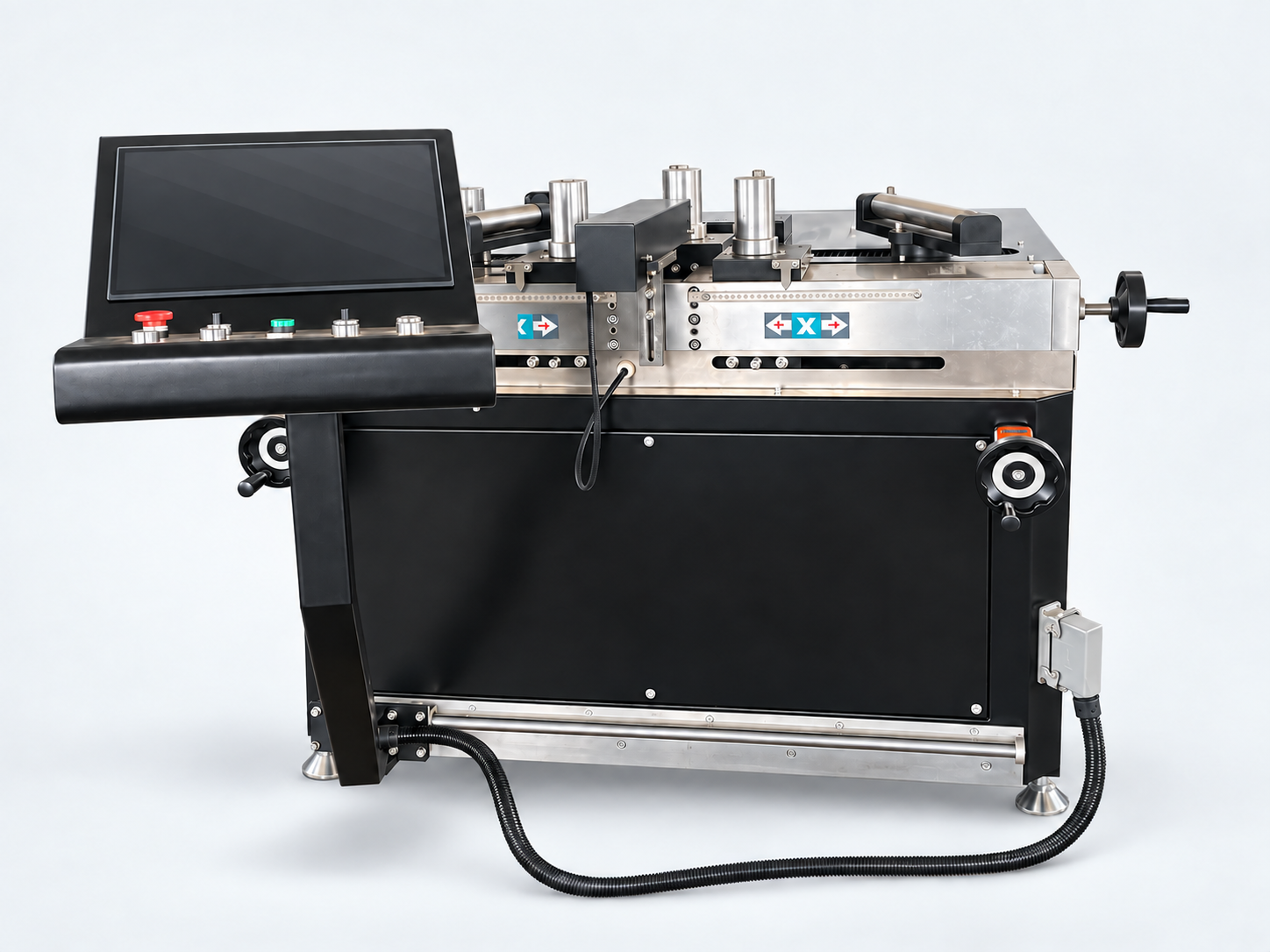

3D six-servo CNC
3DGW-CNC-15T
Move beyond a single plane with controlled 3D profile bending.
15 Trated force8 kWcatalog power
Explore this machine →Start with your part
Which machine fits your profile?
Send a drawing or clear section photos, material, wall thickness and target radius. Our engineers will review the job and recommend a machine and tooling arrangement.
